IDTechEx's report "3D Electronics/Additive Electronics 2024-2034: Technologies, Players, and Markets" analyses the technologies and market trends that promise to bring electronics into the 3D realm. Drawing from over 40 company profiles, the majority based on interviews, it assesses three distinct segments of the 3D electronics landscape: applying electronics to a 3D surface (partially additive), in-mold electronics, and fully additive electronics. Within each segment, the report evaluates the different technologies, potential adoption barriers, and application opportunities. It includes detailed 10-year market forecasts for each technology and application sector, delineated by both revenue and area/volume.

Motivation for 3D electronics
While partially additive 3D electronics has long been used for adding antennas and simple conductive interconnects to the surface of 3D injection-molded plastic objects, more complex circuits are increasingly being added onto surfaces made from a variety of materials by utilizing new techniques. Furthermore, in-mold electronics and 3D printed electronics enable complete circuits to be integrated within an object, offering multiple benefits that include simplified manufacturing and novel form factors. With 3D electronics, adding electronic functionality no longer requires incorporating a rigid, planar PCB into an object then wiring up the relevant switches, sensors, power sources, and other external components.

The report weighs the pros and cons of each approach against each other for multiple applications, with numerous case studies showing how the different manufacturing techniques are deployed across the automotive, consumer goods, IC packaging and medical device sectors. Furthermore, through detailed analysis of the technologies and their requirements, IDTechEx identifies innovation opportunities for both materials and manufacturing methods.

Applying electronics to a 3D surface
The most established approach to adding electrical functionality onto the surface of 3D objects is laser direct structuring (LDS). LDS saw tremendous growth around a decade ago and is used to manufacture hundreds of millions of devices each year, around 75% of which are antennas. However, despite its high patterning speed and widespread adoption, LDS has some weaknesses that leave space for alternative approaches to surface metallization. Valve jet printing or termed dispensing, a technique enabling wide range of materials deposition, is already used for a small proportion of antennas, and is the approach of choice for systems that deposit entire circuits onto 3D surfaces.

Aerosol jetting and laser induced forward transfer (LIFT) are other digital deposition technologies, which offer higher resolutions and rapid deposition of a wide range of materials respectively. Other emerging techniques such as ultra precise dispensing, electrohydrodynamic printing, impulse printing, pad printing, spray metallization are also benchmarked in this report, enabling new market potential of electronics on 3D surfaces. An advantage of digital deposition methods of the incumbent LDS technology is that dielectric materials can also be deposited within the same printing system, thereby enabling multilayer circuits. Insulating and conductive adhesives can also deposited, enabling SMD components to be mounted onto the surface.

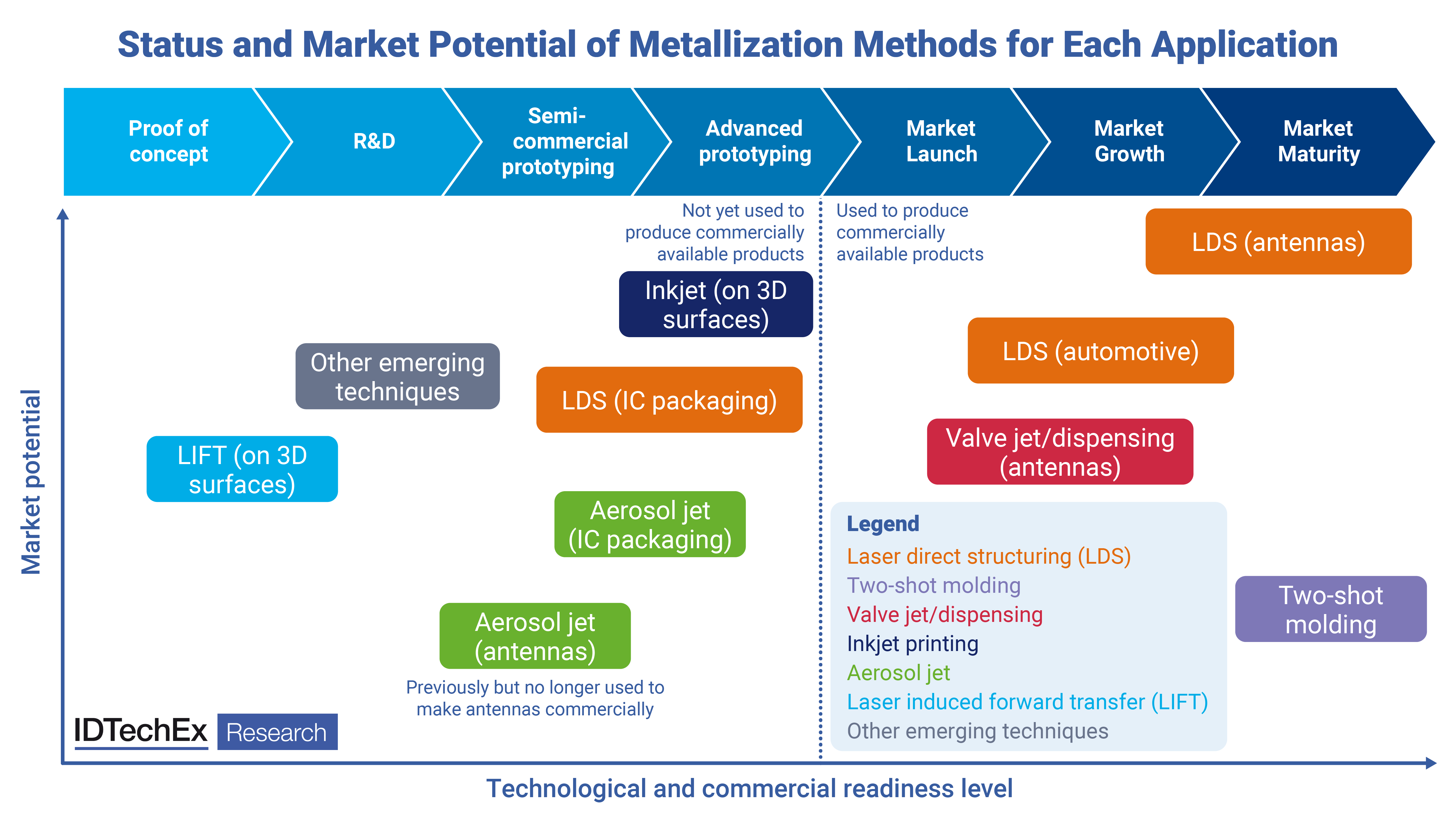

Status and market potential of metallization methods for each application. Source: IDTechEx

In-mold electronics
In-mold electronics (IME), in which electronics are printed/mounted prior to thermoforming into a 3D component, facilitates the transition towards greater integration of electronics, especially where capacitive touch sensing and lighting is required. IME offers multiple advantages relative to conventional mechanical switches, including reduction in weight and material consumption of up to 70% and much simpler assembly. The IME manufacturing process can be regarded as an extension of the well established in-mold decorating (IMD) process, thus much of the existing process knowledge and capital equipment can be reused. IME differs from IMD though the initial screen printing of conductive thermoformable inks, followed by deposition of electrically conductive adhesives and the mounting of SMDs (surface mount devices, primarily LEDs at present). More complex multilayer circuits can also be produced by printing dielectric inks to enable crossovers.

Despite the wide range of applications and the advantageous reductions in size, weight, and manufacturing complexity, commercial deployment of IME integrated SMD components has thus far been fairly limited. This relatively slow adoption, especially within the primary target market of automotive interiors, is attributed to both the challenges of meeting automotive qualification requirements and the range of less sophisticated alternatives such as applying functional films to thermoformed parts. Along with greater acceptance of the technology, this will require clear design rules, materials that conform to established standards, and crucially the development of electronic design tools.

Fully printed 3D electronics
The least developed technology is fully printed 3D electronics, in which dielectric materials and conductive materials are sequentially deposited. Combined with placed SMD components, this results in a circuit, potentially with a complex multilayer structure embedded in a 3D plastic object. The core value proposition is that each object and embedded circuit can be manufactured to a different design without the expense of manufacturing masks and molds each time. Fully 3D printed electronics are thus well suited to applications where a wide range of components need to be manufactured at short notice. The technology is also promising for applications where a customized shape and even functionality is important. The ability of 3D printed electronics to manufacture different components using the same equipment, and the associated decoupling of unit cost and volume, could also enable a transition to on-demand manufacturing.

The challenges for fully 3D printed electronics are that manufacturing is fundamentally a much slower process than making parts via injection molding since each layer needs to be deposited sequentially. While the printing process can be accelerated using multiple nozzles, it is best targeted at applications where the customizability offers a tangible advantage. Ensuring reliability is also a challenge, considering different material properties; additionally, with embedded electronics post-hoc repairs are impossible - one strategy is using image analysis to check each layer and perform any repairs before the next layer is deposited.

Comprehensive analysis and market forecasts
IDTechEx has been researching the emerging printed electronics market for well over a decade, launching our first printed and flexible sensor report back in 2012. Since then, we have stayed close to the technical and market developments, interviewing key players worldwide, attending numerous conferences, delivering multiple consulting projects, and running classes and workshops on the topic. This enables us to provide a complete picture of the 3D electronics technological and market landscape, along with the entire field of printed electronics.
This report provides the following information:
Technology trends & manufacturer analysis:
  • Introduction to 3D electronics including electronics on 3D surfaces, in-mold electronics and fully additive electronics.
  • Detailed technology benchmarking on conventional and emerging metallization methods.
  • Discussion of the status, challenges and opportunities across the whole 3D electronics industry.
  • Over 40 company profiles of manufacturing equipment and material suppliers, including SWOT analysis and discussion of value proposition and targeted applications.
  • Updates from recent industry conferences (LOPEC 2023 & 2024, innoLAE 2023 & 2024, FLEX 2023).

Market forecast & analysis:
  • Market size (volume demand) and 10-year market forecast (revenue) for each manufacturing method, segmented by application.
  • Assessment of technological and commercial readiness of established and emerging techniques.
Report MetricsDetails
Historic Data2022 - 2023
CAGRThe global market for 3D electronics will reach US$4.3 bn by 2034, at a CAGR of 15.8% between 2024 and 2034, with the most growth coming from IME.
Forecast Period2024 - 2034
Forecast UnitsVolume (m^2), Annual Revenue (USD)
Regions CoveredWorldwide
Segments CoveredTechnologies of electronics onto 3D surface (LDS, aerosol, valve jet/dispensing, LIFT and emerging techniques), in-mold electronics (IME-with-SMD and IME-without-SMD) and fully printed 3D electronics, and their applications in automotive, antennae, medical, IC packaging and others.
