전도성 잉크 기술, 응용분야, 주요 기업 및 시장전망 2024-2034

플레이크 기반, 나노입자, 무입자, 구리, 스트레쳐블, 열성형 나노와이어 잉크 등 전자잉크 및 태양광, EMI 차폐, 인쇄전자, 플렉서블 하이브리드 전자, 웨어러블, e-텍스타일, 3D 인쇄전자 등의 응용분야를 포괄하는 보고서

By
모두 보기 설명 목차, 표 및 그림 목록 자주 묻는 질문 가격 Related Content
이 보고서는 기술 및 시장조사와 30개 이상의 기업과의 인터뷰를 바탕으로 8가지 유형의 전도성 잉크(플레이크 타입 실버잉크, 나노입자 기반 실버잉크, 구리, 스트레쳐블 잉크, 무입자 타입 전도성 잉크 등)에 대한 기술개발 동향, 잉크특성 벤치마킹과 15가지 응용분야 (광전지, 인쇄 센서, IMD, 하이브리드 전자, RFID, 스마트페키징 등)별 잉크 요구사항 및 기회요인을 평가하고, 향후 10년간 시장예측 및 전망을 제공합니다.
이 보고서에서는 다음과 같은 정보를 제공합니다:

기술 동향 및 제조업체 분석:
  • 전도성, 경화 시간, 경화 온도 등을 기준으로 8가지 전도성 잉크 유형과 공급업체 비교
  • 전자 피부 패치 및 인몰드 전자 장치(IME)와 같은 새로운 분야를 포함한 15가지 전도성 잉크 응용분야의 요구 사항 평가
  • 전도성 잉크의 15가지 응용분야에 대한 전망
  • 다양한 응용 분야를 위해 제조된 전도성 잉크 사례 분석
  • 잉크 타입별 제조 환경 평가
  • 30개 이상의 주요 기업 프로필 (SWOT 분석 포함)
  • 대량 생산을 위해 전도성 잉크를 검증하는 방법에 대한 논의
  • 전도성 잉크 유형별 가격 및 가격 구성 분석
  • 은 가격이 전도성 잉크 시장에 미치는 영향 평가
  • 전도성 잉크 유형 및 응용분야별 요구 사항을 벤치마킹

시장 예측 및 전망:
  • 전도성 잉크 유형과 응용분야별 세분화된 시장 규모 및 10년 시장 전망
  • 전도성 잉크 유형과 응용분야별 기술 및 상업적 준비 수준 평가

이 보고서에서 다루는 주요 내용/목차는 아래와 같습니다.

핵심 요약

시장 전망
  • 전도성 잉크 유형별 세분화
  • 애플리케이션별 세분화

전도성 잉크 기술(재료별 세분화)
  • 플레이크 기반 실버 잉크
  • 나노 입자 기반 은 잉크
  • 무입자 잉크
  • 구리 잉크
  • 탄소 잉크(그래핀 및 CNT 포함)
  • 신축성/열성형 잉크
  • 은 나노 와이어
  • 전도성 폴리머

전도성 잉크의 응용 분야
  • 회로 제조(플렉서블 하이브리드 전자, 인몰드 전자, 3D 전자, 전자 섬유, 회로 프로토타이핑)
  • 센서(정전식 터치 센서, 압력 센서, 바이오센서, 스트레인 센서, 전자 피부 패치)
  • 기타 애플리케이션(광전지, 히터, EMI 차폐, 안테나, RFID 및 스마트 패키징)

IDTechEx's report 'Conductive Inks Market 2024-2034: Technologies, Applications, Players' comprehensively details this crucial material technology that underpins both photovoltaics and the emerging field of printed electronics. Based on primary research and interviews with over 30 companies, the report assesses the market for eight different conductive ink types across 15 different applications. Conductive ink types include flake-based silver, nanoparticle-based silver, copper, stretchable/thermoformable and particle-free, while applications include photovoltaics, multiple types of printed sensors, flexible hybrid electronics (FHE), in-mold electronics (IME), and RFID/smart packaging. This detailed segmentation provides 39 distinct forecast lines, providing a clear picture of the status of the market for each ink type and future opportunities. The market as a whole is currently valued at US$3.7bn and forecast to exceed US$6.5bn by 2034.

Primary insight from interviews with individual players, ranging from established players to innovative start-ups, is included via over 30 detailed company profiles that include discussion of both technology and business models along with SWOT analysis. Additionally, the report includes analysis of conductive ink parameter space, based on a database of over 100 conductive inks that includes curing time, conductivity, and viscosity. Together with segmentation of suppliers by ink type, this report provides a comprehensive picture of the global conductive ink market.

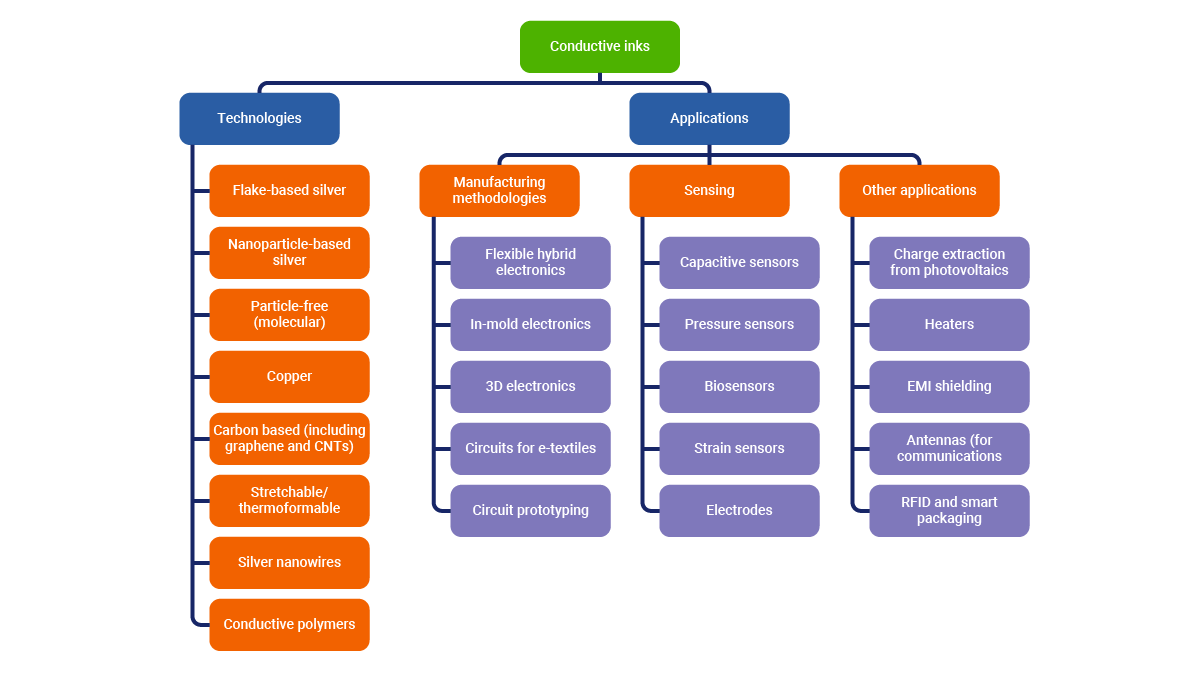

Conductive ink types and applications covered in the report.

Technical developments
Flake-based conductive inks are a longstanding technology, widely used for metallizing the upper surface of photovoltaic panels for charge extraction. However, this market is unlikely to keep up with growth in PV panels, with new technologies developing to reduce the amount of silver ink required. Instead, much of the growth will come from emerging applications across the printed flexible electronics space.

This broadening of the application space creates opportunities for emerging conductive ink formulations that aim to meet specific application requirements:
  • Particle-free conductive inks are metallized in situ, producing a smooth, thin conductive layer ideally suited to high frequency EMI shielding and antennas. The very low viscosity also makes these inks ideally suited to high resolution deposition techniques such as aerosol printing.
  • Nanoparticle-based conductive inks offer higher conductivity, enabling more compact circuit designs.
  • Liquid metal gel makes an ideal stretchable ink since there is no increase in resistance over time - the conductive liquid flows to accommodate the dimensional change. It is primarily targeted at wearable strain sensors.
  • Copper-based inks with additives that prevent oxidation during sintering are gaining significant traction, with major electronics manufacturers running qualification projects. Copper inks are especially suitable where cost is the main driver, such as RFID/smart packaging antennas.

Application opportunities
As a platform technology for printed electronics, conductive inks can be utilized in a remarkably wide range of applications, spanning market verticals ranging from healthcare to energy. This report divides the conductive ink application space into 15 segments, each outlining:
  • Introduction to the application.
  • Assessment of technological and commercial status.
  • Conductive ink requirements for that specific application.
  • Examples of conductive inks targeting that application.
  • Market forecast, including the adoption of different ink types where appropriate.

Some of the most promising conductive ink applications, due to the potential for both rapid growth and specialist ink requirements enabling differentiation, are electronic skin patches, strain sensors and in-mold electronics (IME).

Outlook
The growth in printed/flexible/hybrid electronics, especially where it enables new applications, and even business models, such as electronic skin patches for remote health monitoring and smart packaging, will drive the growth of the conductive ink market over the next decade. Furthermore, many emerging applications, such is in-mold electronics, e-textiles and high-frequency antennas, have specific ink requirements that provide an opportunity for differentiation.

Key questions answered in this report
  • What types of conductive inks are produced by each supplier?
  • How will volatile silver prices impact the conductive ink market?
  • What are the requirements for each conductive ink application, and how much ink is used in each?
  • What is the technological and market readiness of each conductive ink application?
  • What are the key growth opportunities where there is scope for differentiation?
  • Who are the key players producing each type of ink?

IDTechEx has over 20 years of expertise covering printed and flexible electronics, including conductive inks. Our analysts have closely followed the latest developments in the technology and associated markets by interviewing many conductive ink suppliers and users and annually attending multiple printed electronics conferences such as LOPEC and FLEX. This report provides a complete assessment of the fragmented conductive ink landscape, helping to inform product development and positioning.

Key Aspects
This report provides the following information:

Technology trends & manufacturer analysis:
  • Comparison of 8 conductive ink types and suppliers across multiple metrics, including conductivity, curing time, and curing temperature.
  • Assessment of the specific requirements of 15 conductive inks applications, including emerging areas such as electronic skin patches and in-mold electronics (IME).
  • Outlook for each of the 15 conductive applications, including specific conclusions relevant to conductive inks.
  • Examples of conductive inks formulated for many different applications.
  • Segmentation of the fragmented conductive ink manufacturing landscape by both metal (silver, copper, etc) and formulation (flakes, nano-particles, particle-free etc).
  • Over 30 company profiles of conductive ink manufacturers, including SWOT analysis and size along with discussion of value proposition and target applications.
  • Discussion of how contract manufacturers and EMS companies are qualifying conductive inks for mass production.
  • Pricing for each conductive ink type, based on discussion with suppliers and analysis of published prices. This includes estimates of how the value is divided amongst materials and processing steps.
  • Assessment of how volatile silver prices will affect the conductive ink market.
  • Benchmarking of conductive ink types and application requirements, enabling assessment of suitability.

Market Forecasts & Analysis:
  • Market size and 10-year market forecasts segmented by both conductive ink types and applications.
  • Assessment of technological and commercial readiness level for different types and applications of conductive ink.
Report MetricsDetails
Historic Data2020 - 2023
Forecast Period2024 - 2034
Forecast UnitsVolume (wet tonnes), revenue (USD)
Segments CoveredFlexible hybrid electronics (FHE), in-mold electronics (IME), 3D electronics (partially/fully additive), e-textiles, circuit prototyping, capacitive sensors, pressure sensors, biosensors, strain sensors, wearable electrodes, photovoltaics (rigid/flexible), printed heaters, EMI shielding, antennas (for communication) and RFID & smart packaging.
IDTechEx의 분석가 액세스
모든 보고서 구입에는 전문가 분석가와의 최대 30분의 전화통화 시간이 포함되어, 보고서의 주요 결과를 귀하가 제시하는 비즈니스 문제에 연결하도록 돕습니다. 이 전화통화는 보고서를 구매한 후 3개월 이내에 사용해야합니다.
추가 정보
이 보고서에 대해 궁금한 점이 있으시면 언제든지 research@IDTechEx.com으로 보고서 팀에 문의하거나, 영업 관리자에게 문의하십시오

AMERICAS (USA): +1 617 577 7890
ASIA (Japan and Korea): +81 3 3216 7209
EUROPE (UK) +44 1223 812300
