電気自動車の熱管理 2025-2035年：材料、市場、技術

（詳細は目次のページでご確認ください）

● 全体概要

● はじめに

● 外気温度がEV航続距離に与える影響

● 車室内暖房のイノベーション

□ ヒートポンプと台数予測

● 熱設計と熱システムのサプライヤー

● EV用冷却水、冷媒とその違い

□ WEGと数量予測

□ オイルと数量予測

□ 冷媒と数量予測

● EV用リチウムイオン電池の熱管理

□ 現行技術とメーカー戦略（地域別市場シェアと世界予測を含む）

□ 液浸冷却（自動車、建設・農業・鉱業用電動車両における液量予測も掲載）

□ 相変化材料：有力企業、材料、これまでの採用状況

□ ヒートスプレッダと冷却板：材料と設計のトレンド

□ EVバッテリー熱管理のユースケース

□ EV向け熱伝導材料：形態、トレンド、EVにおけるユースケースと、乗用車、トラック、バス、バン、二輪車、三輪車、マイクロカーのフォーキャスト

□ 防火材料比較（セル間材料とパックレベル材料の予測も掲載）

● EV充電スタンドの熱管理：DC急速充電概要とケーブル冷却の必要性

● 電動モーターの熱管理

□ メーカー戦略

□ 中国、欧州、米国における空冷、油冷、水冷の市場シェアと各技術市場予測

□ モーターの含浸と封止

□ 最先端モーター技術と熱的考慮事項（インホイールモーターなど）

□ EVにおけるユースケース

● パワーエレクトロニクスの熱管理

□ ワイドバンドギャップ半導体（SiC、GaNなど）：トレンド

□ ワイヤボンディング、はんだ付け、先端基板や熱伝導材料の排除を取り巻く技術とトレンド

□ パワーエレクトロニクスの冷却戦略（EV用インバータの空冷、水冷、直接油冷についての予測を含む）

□ EVにおけるユースケース



■ セル間とパック単位の保護に分けて見る防火材料の2035年までの予測：

■ 中国、欧州、米国における空冷、油冷、水冷の各方式の自動車用電動モーター（2015-2023年）

■ 空冷、油冷、水冷の各方式の自動車用電動モーターの2035年までの予測

■ 空冷、油冷、水冷の各方式の電気自動車用インバータの2035年までの予測



Early trends in the market largely revolved around the adoption of active cooling for the battery pack, now this is the industry standard. However, batteries, motors, and power electronics in EVs continue to evolve with developments of cell-to-pack designs, directly oil-cooled motors, and silicon carbide power electronics being just a few of the key trends that will impact thermal management strategies. How this all interacts with the cabin thermal management is equally important with thermal architectures becoming more integrated and impending regulations impacting future refrigerant choices.



This report from IDTechEx analyses the EV market and the thermal management strategies adopted by OEMs and their suppliers, with a look to the future and how key EV technology trends will impact these methods for electric vehicle batteries, motors, power electronics, and cabin thermal management. This information is obtained from primary and secondary sources across the EV industry. The research also utilizes IDTechEx's extensive electric car database that consists of over 650 model variants with their sales figures for 2015-2023 plus technical specifications such as battery capacity, battery thermal strategy, motor power, motor cooling strategy, and many others. Market shares are given for existing thermal management strategies (air, oil, water, immersion) and fluids used (water-glycol, oil, immersion), for the battery, motor, and inverter in EVs along with market forecasts to 2035.



How the thermal management of the drivetrain components and cabin all interact is critical. The market is moving to greater levels of integration, with heat pumps and integrated thermal management modules. Some OEMs are taking thermal management and components development in-house to improve overall system efficiency and shorten the supply chain. This report takes a look at examples of EV thermal architectures and some key market announcements for key thermal management components (high voltage coolant heaters, condensers, pumps, integrated modules, etc.). The report also gives an overview of the key tier 1 thermal system suppliers and their size.



A host of fluids including refrigerants, oils, and water-glycol are required for the operation of an EV. These fluids are evolving to meet new requirements in EVs such as lower electrical conductivity, copper corrosion performance, and other properties. Regulatory factors will impact refrigerants and the choice between R134a, R1234yf, R744, and R290. This report provides an analysis of the coolant and refrigerant capacities in EVs with forecasts to 2035 for water-glycol, refrigerant, oils, and immersion fluids.







The move towards increasing energy density and reducing costs has led to cell-to-pack or cell-to-body/chassis designs. Cell-to-pack eliminates module housings, stacking the cells directly together. Designs from BYD, Tesla, CATL, and others have made it onto the road, with more expected. In this report, IDTechEx considers how this trend will impact thermal management.



One major change is the application of thermal interface materials (TIMs), pushing in favor of thermally conductive adhesives to make a structural connection rather than the typical gap filler seen in many existing designs. This report forecasts TIM demand for EV batteries to 2035 in terms of mass and revenue, segmented by gap pad, gap filler, and thermally conductive adhesive.



Many material suppliers are tailoring their materials to provide multiple functions, including fire protection. This enables fire protection to be included without severely impacting the energy density of the pack. These include inter-cell materials that provide compression, thermal insulation, and fire protection. This report gives an overview of the material options with a total forecast to 2035. For a segmented material forecast and a deeper dive into fire protection, please see the Fire Protection Materials for EVs report by IDTechEx.



Immersion cooling is a topic that retains interest in the EV market with greater thermal homogeneity proposing benefits such as faster charging and increased safety. The technology is still at an early stage in terms of automotive commercialization but has seen greater traction in off-road markets. This report takes a deep dive into immersion cooling technology, with benchmarking of fluids and suppliers, market announcements and partnerships, and fluid volume forecasts for EVs in automotive, construction, agriculture, and mining markets.

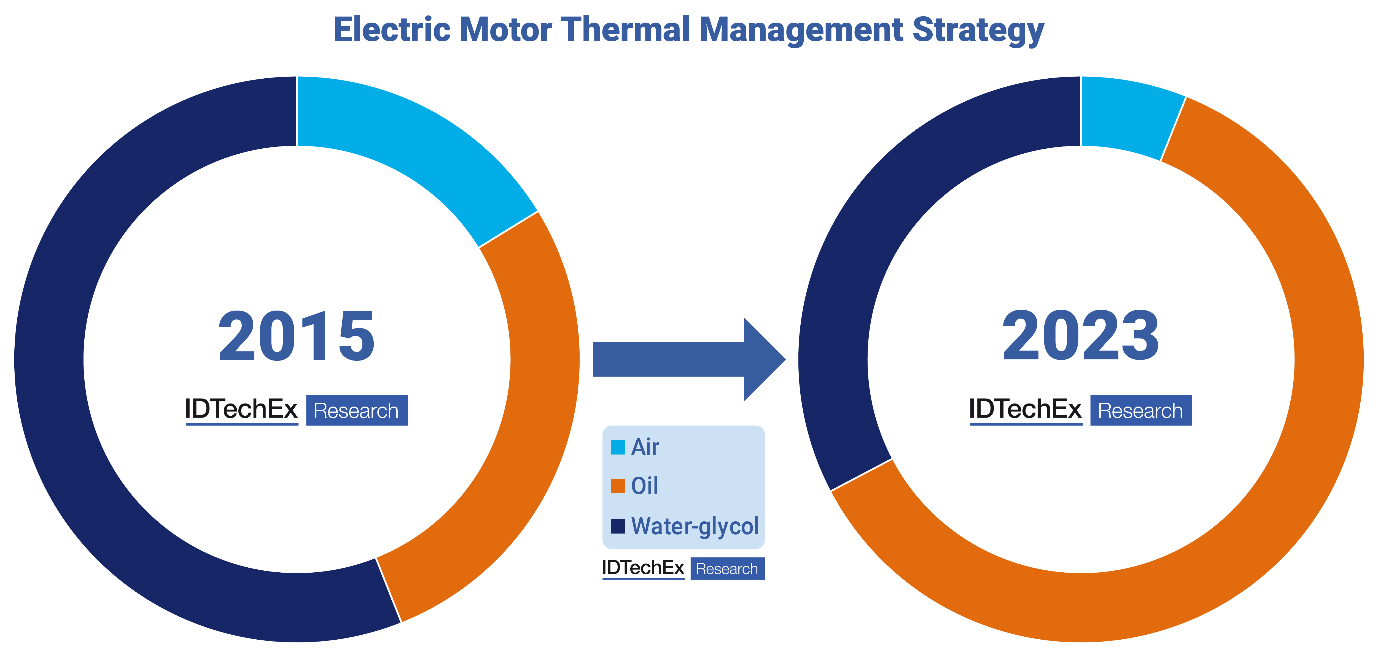

For electric motors, the magnets used in the rotor and the windings used in the stator must be kept in an optimal operating temperature window to avoid damage or inefficient operation. Water-glycol used in a jacket around the motor has been the standard thermal management strategy for electric motors in EVs. However, recent years have seen much greater adoption of directly oil cooling the motor to provide better thermal performance, and in some cases, eliminate the cooling jacket, reducing the overall motor size. Oil cooling became the dominant form of cooling for EV motors in the first half of 2022, but that's not to say that water-jackets are going away, they are often used in conjunction with oil cooling, and water-glycol coolant is typically used to remove heat from the oil and can be used to integrate with the vehicles thermal management strategy as a whole. IDTechEx provides forecasts from 2015-2035 for electric motors segmented by the use of air, oil, or water-glycol cooling.

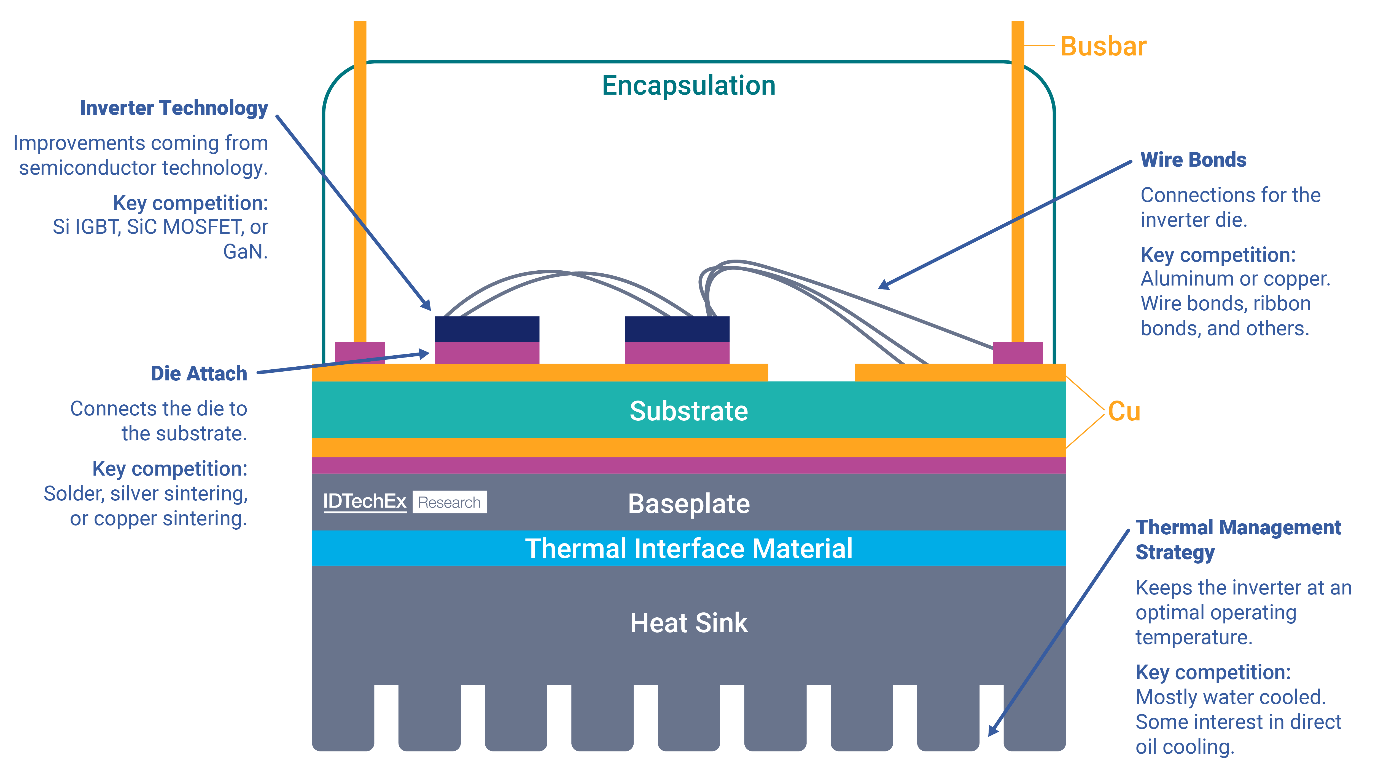

The adoption of SiC is the largest trend in the news for EV power electronics and with good justification. This has had an impact on the construction of power electronics packages. Developments are happening for TIMs, wire bonding, die-attach, and substrate materials, largely with the goal of improving package reliability. The report provides analysis of these trends and the drivers behind adoption.



Inverter IGBT or SiC MOSFET modules are mostly cooled using water-glycol. However, both single-side and double-sided cooling options are used, each with its own benefits. There has also been an increased interest in using oil to cool power electronics to eliminate much of the water-glycol componentry within the electric drive unit, using the same oil for the motors and inverter. Whilst there has not been adoption of this approach in the current market, IDTechEx sees promise for this approach and includes a 10-year forecast for EV inverters using air, water, or oil cooling.







Analysis of thermal management for Li-ion batteries, electric traction motors, and power electronics:



10 Year Market Forecasts & Analysis:

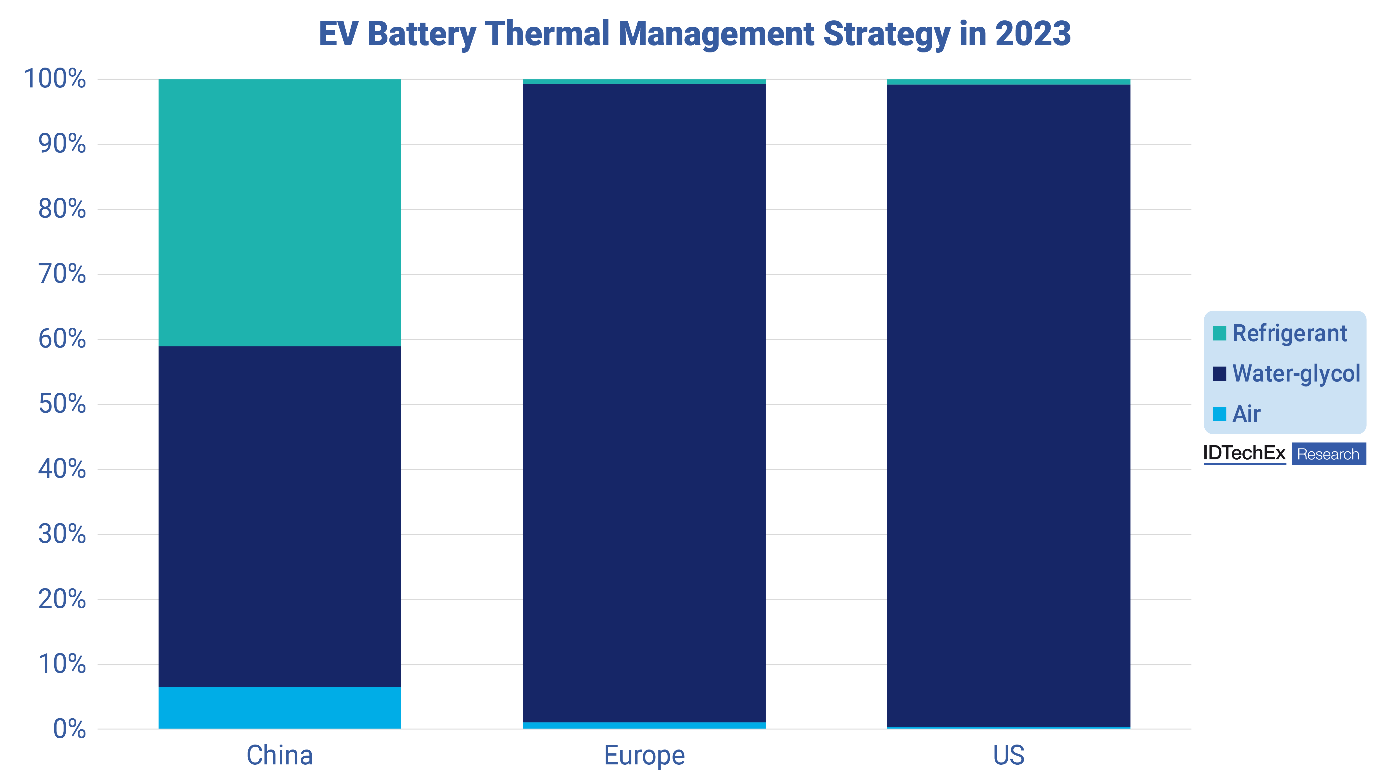

1, Fire protection materials forecast to 2035 by inter-cell and pack-level protection

2, Air, oil, and water cooled electric motors for cars in China, Europe, and the US for 2015-2023.

3, Air, oil, and water cooled electric motors for cars forecast to 2035.

4, Air, oil, and water cooled electric car inverters forecast to 2035.
