5G 向け低誘電損失材料 2021-2031年
トレンド、技術および見通し
製品情報
概要
目次
価格
Related Content
5G の展開は全世界で急速に進んでおり、2030年までに7200億ドルの市場規模になることが見込まれています。5G ネットワークの最も革新的な部分は高周波数の 5G 技術にあります。ミリ波帯 5G 対応デバイスは基板とパッケージの双方のレベルにおける伝送損失を減らすため低誘電損失材料を採用することになります。これは低誘電損失材料の市場を生み出すことになり、その規模は2031年までに1億1000万ドルを超え、2026年から2031年まで28％の年平均成長率（CAGR）に達することとなります。
このレポートでは5G機器向けの有力な低損失材料に注目しています
例えば、次のような材料が挙げられます。
- 低損失熱硬化性材料：熱硬化性材料は3G/4Gネットワーク機器の分野で広範に利用されてきました。しかし、ミリ波5GではDkとDfが高くなるため、熱硬化性材料の利用が限定されます。ここでは、材料のDkとDfを低減させるための主要な材料サプライヤーの戦略と研究開発の取り組みに注目します。
- ポリテトラフルオロエチレン（PTFE）：自動車用レーダーシステムや高速／高周波（HS/HF）基板およびコネクタなどの高周波アプリケーションにおいて最も一般的に利用されている材料です。
- 液晶ポリマー（LCP）：スマートフォンアンテナ用のフレキシブル基板の製造に利用されています。市場は今後も成長し、さらに他の用途での応用も進むと考えられます。
- 低温同時焼成セラミック（LTCC）：LTCCではDfが低く、Dkが広い範囲をとることから、小型高周波フィルタなど、LTCCをベースにしたコンポーネントの利用が促進されます。
- その他：5Gシステムのパフォーマンスを最適化するために、炭化水素、ポリフェニレンエーテル（PPE、PPO）、ガラスなどの多様な材料が利用されるようになるでしょう。今後はそうした代替材料が、5Gの材料市場で大きなシェアを占めるようになると考えられます。
5G関連機器用の低損失材料に注目した、今後10年間の予測の概要を図3に示します
この予測は、次の項目に基づいて行われています。
- 周波数：サブ6 GHz 5Gおよびミリ波5G。
- 市場セグメント：低損失材料を利用する、インフラ、スマートフォン、カスタマー構内設備（CPE）の各セグメントについて、アンテナ用基板材料、ビームフォーミングIC用の再配線層、および高度なパッケージ基板における低損失材料の利用を予測しています。
- 材料タイプ：サブ6GHz 5Gとミリ波5Gの両方について、低損失材料の発展を支える市場基盤を予測しています。
本調査レポートは、各種の低損失材料に関する調査に基づき、比誘電率（Dk）、誘電正接（Df）、吸湿性、費用、製造性という5つの主要な要素に照らして、材料の特性のベンチマーキングを行います。レポートで取り扱う範囲を図2に示します。低損失材料は、回路基板やPCB基板として使用されるだけでなく、高度なパッケージ基板でも利用されます。1つの大きなトレンドとしてはアンテナインパッケージ（AiP）が挙げられます。ミリ波に向けて周波数が高くなるに従い、アンテナ素子のサイズは小さくなり、アレイをパッケージ自体に収容できるようになります。この集積によってRFパスが短縮され、伝送損失が最小になります。AiPでは、回路基板（および再配線層）、電磁波遮断（EMI）シールド、モールドアンダーフィル（MUF）材料などを用途とする低損失材料を必要とします。
詳細は目次のページでご確認ください。
The fifth-generation telecommunication technology, 5G, is more than a faster mobile experience to stream movies. It enables a universal connection between devices from automotive to remote robots. As the profitable business models and killer applications start to emerge, 5G is one of fastest growth markets, which will be over $720bn in 2030 and contribute to $2trn annual connectivity boost to global GDP.
The most revolutionary aspect of 5G network relies on the high frequency 5G technologies, i.e. mmWave 5G, which utilize spectrum from 26 GHz up to 40 GHz. At such high frequency, many technologies and devices are facing challenges as summarized in figure 1. The high-frequency signals result in significant transmission loss, require higher power and more efficient power supply, and generate more heat. The transmission loss is a pain point for the antenna design and radio frequency (RF) integrated circuits (ICs) for 5G applications. For low-frequency 5G, i.e. sub-6 GHz 5G, due to the high data transfer speed, reducing signal loss is also desirable.

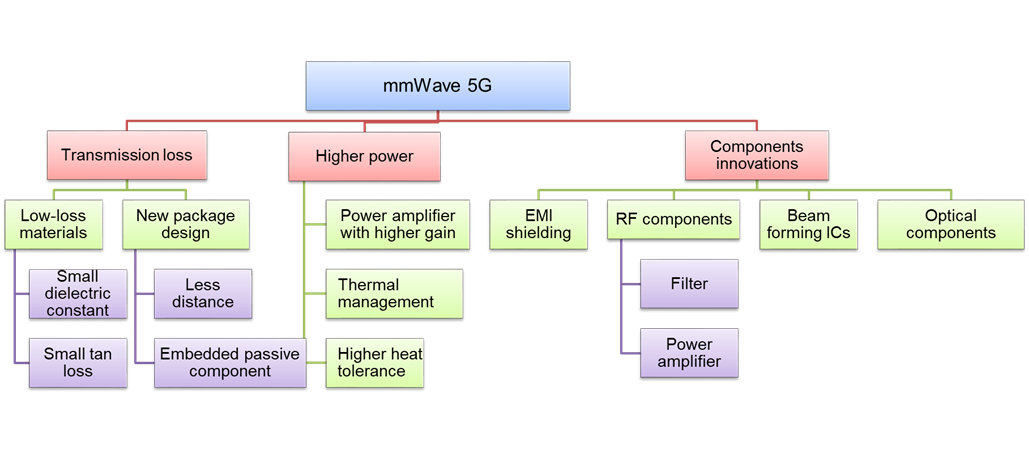

Figure 1: Overview of challenges, trends and innovations for mmWave 5G, source: IDTechEx
With the future rise of mmWave 5G, low-loss materials will foresee a rapid growth and play an increasingly important role. In this report, we survey the landscape of the low-loss materials and benchmark their performance by five key factors, i.e. dielectric constant (Dk), dissipation factor (Df), moisture absorption, cost, and manufacturability. The scope for the report is shown in figure 2. Low-loss materials will not only be used as substrate or PCB board, but also for advanced packages. One of the strong trends is antenna in package (AiP); as we go higher in frequency towards mmWave, the size of the antenna elements will shrink and the arrays can be fitted into the package itself. This integration will also help shorten the RF paths, and thus minimize the transmission losses. AiP will need low-loss materials for the substrates (redistribution layers as well), electromagnetic interference (EMI) shielding, molded underfill (MUF) materials and more.

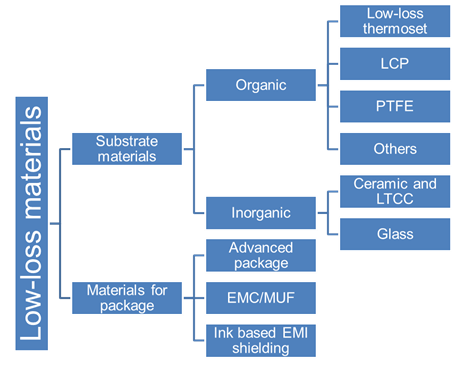

Figure 2: Scope of the low-loss materials covered in the report, source: IDTechEx
We highlight promising low-loss materials for 5G devices. These include:
- Low-loss thermoset materials: thermoset materials dominate the market for 3G/4G network devices. However, the high Dk and Df restrict their use in mmWave 5G. We focus on the strategies and R&D effort from key materials suppliers to reduce the Dk and Df for these materials.
- Polytetrafluoroethylene (PTFE): one of the most common materials for high-frequency applications such as Automotive Radar system and high speed / high frequency (HS/HF) board and connectors.
- Liquid crystal polymers (LCP): it has been adapted to make flexible boards for smartphone antennas. The market will continue to grow and expand into other applications.
- Low temperature co-fired ceramic (LTCC): the low Df and a wide range Dk for LTCC will accelerate the use of LTCC based components such as compact high frequency filters.
- Others: in order to optimise the performance for 5G systems, a vastly diversified material will be used, for example, hydrocarbon, poly (p-phenylene ether) (PPE, or PPO) and glass. Those alternative materials will take over a large share of the 5G materials market.
A ten-year forecast focusing on the low-loss materials area for 5G relevant devices are developed, as summarised in figure 3. The forecasts are segmented by:
- Frequency: sub-6 GHz 5G and mmWave 5G.
- Market segments: low-loss materials for infrastructure, smartphone and customer promised equipment (CPE). Among each segment, we calculate the low-loss materials areas as board materials for antennas, redistribution layers for beamforming ICs and other uses in advanced packages.
- Materials types: we estimate the market base on the evolution of low-loss materials for both sub-6GHz 5G and mmWave 5G.

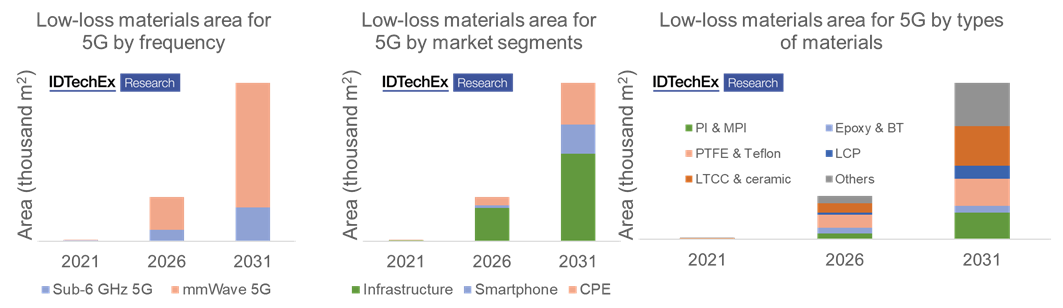

Figure 3: Ten-year forecast of low-loss materials by frequency, market segments and materials types, source: IDTechEx
Based on the materials areas and price trend, we forecast the low-loss materials revenue for 5G devices from 2021 to 2031. The total market will be over 110 million USD by 2031, with an average annual growth rate of 28% from 2026 to 2031. The report contains a comprehensive analysis of different low-loss materials from different perspectives such as performance, technology trends, potentials, and requirements for large scale deployment. Importantly, the report presents an unbiased analysis of primary data gathered via our interviews with players across the supply chain, and it builds on our large database of 5G infrastructure and user equipment.
Figure 4: Ten-year forecast of low-loss materials in 5G by revenue. Source: IDTechEx
IDTechEx のアナリストへのアクセス
すべてのレポート購入者には、専門のアナリストによる最大30分の電話相談が含まれています。
レポートで得られた重要な知見をお客様のビジネス課題に結びつけるお手伝いをいたします。このサービスは、レポート購入後3ヶ月以内にご利用いただく必要があります。
詳細
この調査レポートに関してのご質問は、下記担当までご連絡ください。
アイディーテックエックス株式会社 (IDTechEx日本法人)
電話 03-3216-7209
担当: 村越美和子 m.murakoshi@idtechex.com
